24V/DC 50w ptc heating element with aluminum shell and kapton film
Quick Details:
· PTC hearter does not require temperature controlling system
· It is safe when liquid is burnt out in liquid heating device
· With charcteristics of constant temperature.
· Restore automatically after invalidation
· Not sensitive to voltage fluctuating
· Wide operating voltage
Parameters:
| PTC size | Voltage(V) | Temperature(℃) |
| 30-120*20*5mm | 100-240V | 60℃-280℃ |
| 30-120*30*6mm | 100-240V | 60℃-280℃ |
| 30-120*33*7mm | 100-240V | 60℃-280℃ |
| 30-120*35*7mm | 100-240V | 60℃-280℃ |
| 30-120*40*7mm | 100-240V | 60℃-280℃ |
| 30-120*43*7mm | 100-240V | 60℃-280℃ |
| 30-120*46*7mm | 100-240V | 60℃-280℃ |
| 30-120*56*7mm | 100-240V | 60℃-280℃ |
Applications:
· Fan heating element for ceramic heater fan, hair drier, hand drier, laundry drier, etc.
· Heating plates for coffee makers, steam irons, cooking devices, facial sauna, humidier, etc.
· Tube heating element for curling irons, was warmer, glue gun and dehumidier, etc.
· Ohter designs of heating element can be used for mosquito repellent liquid warmer, contro cevices, etc.
How to order:
1. Voltage
2. Size
3. Surface temperature
4. Length of lead
5. Apperance
Please provide us these information to help you get exect model.
F&Q:
| Questions | Answers |
| What is the MOQ? | 1000pcs. |
| What is the payment terms? | Negotiation. |
| Can you accept special requirement? | Yes, we can.we can design for your special requirement. |
| Can you make the printing artworks (such as user manual/packing/rating label) in our language? | Yes we can.we do OEM work for a long time. |
| Can we order samples? | Yes, you can ,and free samples are available. |
24V/DC 50w ptc heating element with aluminum shell and kapton film

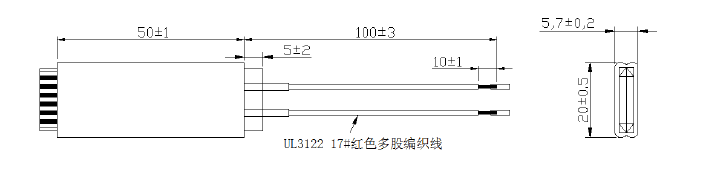

Dimension:
Product Tags:
|
|
24V/DC 50w PTC Heating Element Kapton Film Custom Length With Aluminum Shell Images
|
